Product Details

DC 12V or Power over Ethernet (IEEE 802.3af) supported
1/3" Micron Progressive Scan CMOS
Bundled with f4.2mm / F1.8 Megapixel lens
0.5 Lux at F1.0
Shutter Speed, White Balance, Exposure, Gain Controls
Selectable MPEG-4 / MJPEG compression
Up to SXGA resolution at 8 FPS
Multi-stream with variable frame rate in the same compression
Two-way audio supported
Hardware motion detection

Specifications

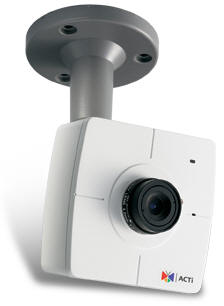

ACTi is proud to announce its first Megapixel IP cube camera ACM-4201 offering Good Quality and Low Light Capability. Using SuperCMOS censor, ACM-4201 provides high illumination down to 0.1 lux even without D&N function. With its very competitive price offering and compact design, ACM-4201 can help you to win projects easily.

	ACTi ACM-4201
Lens Mounting	C/CS
Compression	MPEG-4 / MJPEG
Min. Illumination	0.1 Lux
Max. Resolution	1280x1024
Bit Rate	3 M
Audio	2 way

Image	Device		Micron Progressive Scan CMOS
	Size	1/3 inch
	Effective Pixels	1280 x 1024
Min. Scene Illumination	Color		0.5 Lux at F1.8 (30 IRE,MAX AGC)
Lens	Lens		f 4.2 mm / F1.8
	Viewing Angle	75 Degrees (Horizontal)
Synchronization	Sync. System		Internal
Functions	Motion Detection		Yes (3 windows)
	Electronic shutter	1/10 ~ 1/2,000 sec. (60 Hz) 1/10 ~ 1/2,000 sec. (50 Hz)
	Flickerless	1/120 sec. (60 Hz) 1/100 sec. (50 Hz)
	BLC	Yes
	AGC	Automatic (User defined)
	White Balance	6 modes (AUTO, INDOOR1, INDOOR2, OUTDOOR1, OUTDOOR2, HOLD CURRENT, MANUAL) configurable
S/N Ratio	S/N Ratio		Better than 44 dB
Video Compression	Compression		MPEG-4 SP / MJPEG
	Picture Resolution	SXGA (1280x1024) HD 720 (1280x720) VGA (640x480)
	Image Frame Rate	8 fps at SXGA 10 fps at HD720 30 fps at VGA
Audio Input	Compression		8 kHz, Mono, PCM
	Built-in Microphone	Sensitivity: -36 3dB(0dB=1V/Pa); S/N Ratio: more than 58 dB; Directivity: Omni-directional
Audio Output	Compression		8 kHz, Mono, PCM
	Audio Line Output	Unbalanced, 1.4Vp-p, 1Vrms, 3.5 mm Phone Jack
External I/O	Reset Button		Factory default
	LED	System status
Network	Ethernet		Ethernet(10/100 Base-T), RJ-45 connector
	Protocol	TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP, FTP, SMTP, DNS, DDNS, NTP, ICMP, IGMP, ARP, 3GPP
Software	Web Browser		Microsoft Internet Explorer 6.0 or above
	SDK	ACTi SDK-10000
	Security	Password protection: configured by the administrator
Operating	Temperature		0 C ~ 40 C (32 F ~ 104 F)
Power	Power Requirement		PoE (IEEE 802.3af) with Class 3
	Power Consumption	2.88 W (DC 12V), 3.00 W (PoE)
Physical	Dimensions (WxHxD)		88 mm x 85 mm x 52.1 mm (3.46" x 3.35" x 2.05")
	Weight	150 g (0.33 lb), w/o bracket
