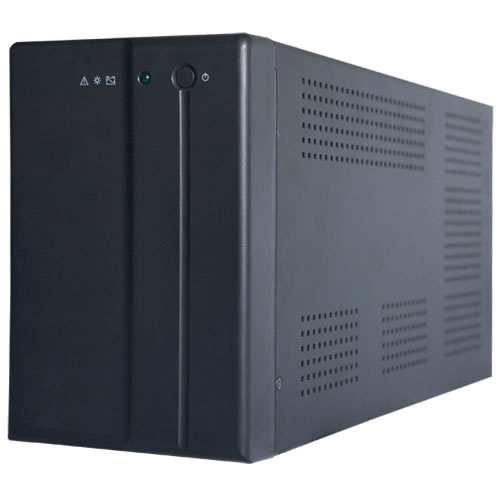

Battery Backup 1,000VA / 600W Surge Protection w/ Energy Savings UPS Mode

Battery Backup 1,000VA / 600W Surge Protection w/ Energy Savings UPS Mode


BAT_1000
$158.22

Product Details


  • Line interactive design
  • Boost and buck AVR (Auto Voltage Regulation)
  • Fully digitized microprocessor control
  • Energy saving function (UPS green mode)
  • 50 / 60 Hz frequency auto sensing and selection
  • Cold start function (DC power on)
  • Short circuit and overload protection
  • RS232 communication port
  • Tel / Modem / LAN surge protection
  • History record of power failure events
  • Smart power management software
  • Scheduled shutdown & reboot


Specifications

Topology Line-Interactive
On-battery Output Waveform Simulated Sine Wave
INPUT
Maximum Capacity 600W
Nominal Input Voltage 110/120Vac (!!)
Nominal Input Frequency 50Hz / 60Hz Auto Sensing
Input Voltage Range Rated Voltage ± 25%
Input Short Protection Circuit Breaker (NEMA models) / Fuse (IEC models)
AC Line-In Plug 110/120V models NEMA 5-15P
OUTPUT
Nominal Output Voltage 110/120Vac (!!)
Output Voltage Regulation Rated Voltage ± 5%
Transfer Time (Typical) 4 ms
Start on Battery Yes
Auto Restart Yes
Automatic Voltage Regulator (AVR) When the input voltage is 9 % to 25 % lower than that of mains,
AVR raises the voltage by 15 % automatically.
When the input voltage is 9 % to 25 % higher than that of mains,
AVR lowers the voltage by 13 % automatically.
Type and Number of Outlets 110/120V NEMA 5-15R
4 x Battery Backup + 1 surge
COMMUNICATIONS INTERFACE
Communication Port1) RS232
Data Line Surge Protection RJ11 / RJ45
PROTECTION
Surge Energy Rating 460 Joules (IEC outlets models)
265 Joules (NEMA outlets models)
Overload Protection UPS automatic power off if overload exceeds 110% of nominal at 60 seconds and 130% at 3 seconds.
Short Circuit UPS output immediate cut off or input fuse protection
BATTERY
User Replaceable Batteries RBAT-12
Typical Backup Time2) 40 minutes
Full load runtime 3 minutes
Half load runtime 12 minutes
Recharge Time to 90% < 4 hours
Protection Auto discharge protection
ADVANCED WARNINGS / DIAGNOSTICS
Front Panel LEDs Power Status / AC Mode / Battery Mode / Battery Fault / Overload
Audible Alarms Battery Mode / Battery Low / Overload
ENVIRONMENTAL PARAMETERS
Operating Temperature 0°C~40°C / 32°F~104°F
Storage Temperature -20°C~60°C / -4°F~140°F
Audible Noise < 40 dBA
PHYSICAL PARAMETERS
Dimensions (LxWxH) Physical Packing 15x5.1x7.5 inches / 382x130x192 mm
Weight Net 13.4kg / 28.6lbs
Gross 14.8kg / 32.6lbs
CONFORMANCE
Safety Certifications UL

Drivers & Manuals

Photos & Videos

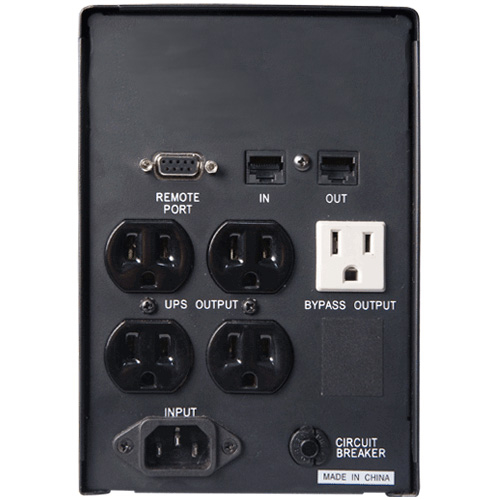

Battery Backup 1,000VA / 600W Surge Protection w/ Energy Savings UPS Mode TESTBAT_1000_back.jpg
