Model	LCD42HTN
Display	3.5" Color TFT LCD
Number of Dots	480 (W) x 234 (H)
Display Area	82.1 (W) x 61.8(H)
Dot Pitch	0.171 (W) x 0.264 (H)
Color Configurations	R.G.B delta
Back Light	CCFL
Input Signal	NTSC & PAL (auto-switch) composite video signal 1.9 Vp-p/75 ohm. Negative. Audio 150~250 mVp-p / 1.0 watts output
Input/Output Terminal	Video: BNC Auto Termination Audio: RCA Jack
Lamp Life-Time	10,000 hour min at 25C temp
Viewing Angle (min)	U/D/L/R 30/50/50/50
Brightness	350 nit (typ.)
Contrast Ratio	150:1 typical
Response Time	Tr: 25ms Tf: 30ms (Type)
Power Voltage	1.2 Volts x 6 (Size "AA") 2200 mAH Rechargeable batteries
Power Consumption	4.5 W max
Operating Temperature	0~60
Storage Temperature	-20 ~80
Operating Humidity	Max. 85% RH
Storage Humidity	Max. 85% RH
Dimension (mm)	152 (W) x 105.6 (H) x 38.6 (D)
Weight	320g (w/o Battery)
External Control	Volume, Brightness, Color

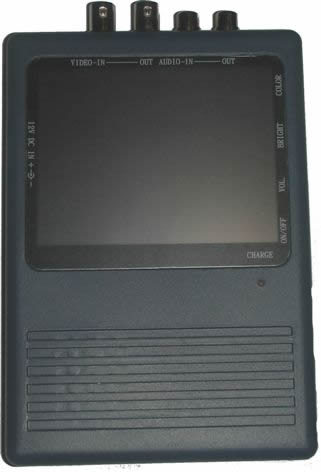

3.5" Color TFT LCD TEST MONITOR
