Video Power Data Surge Protector

Video Power Data Surge Protector


SP001VPD
$95.71

Product Details


  • Ideal for PTZ applications
  • AC 40V max
  • DC 56V max
  • Max current up to 2 amps


Specifications

SP001VPD
Surge Protection Attack Time 1 ns
Maximum Surge Current 4 KV
Surge Life 300 surges of 100Amps
Normal Resistance Across Coax 10,000 MOhms
Surge Resistance Approx. 0 Ohms
Band Pass 0~1 GHZ
Power Passing Capability 130V AC / DC, 65 Vrms at 10 Ampts
�nsertion Loss Less than 0.2 dB
Return Loss (75 ohms) 16 dB
Power �nput AC 40V (MAX), DC56V (MAX)
Connectors Terminal
Dimensions 87x67x27 mm
Weight 136 grams

Drivers & Manuals


Photos & Videos

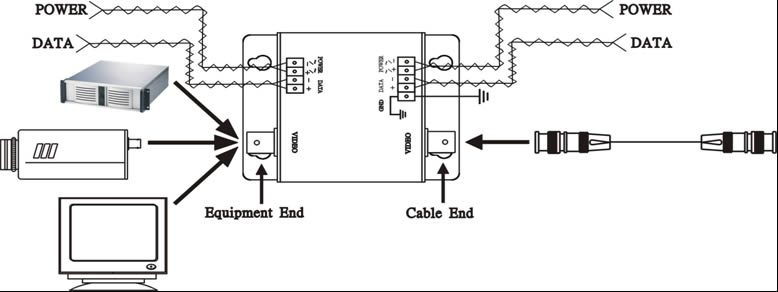

Video Power Data Surge Protector TESTSP001VPD-diagram.jpg
