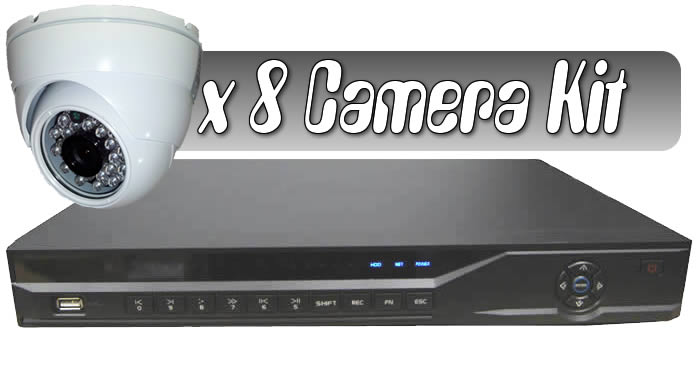

C2-MAX8-960H-KIT

Complete 8 Ch Real Time H.264 Live Recording HDMI Kit

Hard Drive:

Monitor:


C2-MAX-8-960H-KIT
$825.61

Product Details


  • Now with upgraded features  960H Resolution (960x576 or 960x480) @ 30fps all channels
  • New standard for DVR with high performance and competitive price
  • H.264 compression algorithm ideal for standalone DVRs
  • Realtime live display up to 8 cameras with 1080P high definition resolution
  • 240 fps recording
  • Dual encoding streams supported, flexible for network transmission and mobile phone monitoring
  • Pentaplex function: live, recording, playback, backup & remote access
  • 8 Channel simultaneous playback supported
  • Smart video detection: motion detection, camera blank, video loss
  • Smart camera settings: privacy masking, camera lock, color setting, and title display
  • Supported 3D intelligent positioning function with our Speed Domes
  • Alarm triggering screen tips, buzzer, PTZ preset, e-mail, FTP upload
  • Powerful network software: built-in web server, multi-DVR clients, MSS (Mobile Surveillance Software for smart phones) & CMS for windows PC's and Macs
  • Applications are Free.Apple, Android, Blackberry 9000 series +, and Windows Mobile 6.0 are available
  •
  • (8) D-1000-EX Cameras Included or mix and match with B-1000-EX
  • (1) MARS5000 Power Supplies Included, 12V 5 AMPS per power adapter
  • (1) 9 DC splitter cable Included
  • (8) Premade Jumper100-2 Cables Included

HDMI Output 1920 x 1080

Specifications

System
Main Processor High performance embedded microprocessor
Operating System Embedded LINUX
System Resources Pentaplex function: live, recording, playback, backup & remote access
User Interface GUI, on-screen menu tips
Control Device Front panel, USB mouse, keyboard, IR remote control, network keyboard
Input Method Numeral / Character / Denotation
System Status HDD status, data stream statistics, log record, bios version, on-line user etc.
Video
Video Input 8 Channel, BNC, 1.0Vp-p, 75 Ohms
Video Output 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms, 1 VGA output, 1 HDMI output
Video Standards PAL (625 Line, 50f/s)
NTSC (525 Line, 60f/s)
Video Compression H.264
Video Resolution PAL/NTSC
Real-time monitor: Full channel@960H(960×576/960×480) realtime recording
Playback: 1/9-ch:Full channel@960H(960×576/960×480) realtime recording, CIF 352x288/ 352x240, QCIF 176x144 / 176x120
Other channels: CIF 352x288/ 352x240 QCIF 176x144 / 176x120
Support dual streams: extra stream resolution QCIF 176x144 / 176x120
Video Recording Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel
Video Display Split Full and multiple screen display
Tour Display Support
Image Quality 1~6 level (level 6 is the best)
Privacy Masking 4 self-defined four-sided zones for privacy masking for each camera
Camera Lock Camera locked for users
Camera Adjustment Adjust color according to different time period
Video Information Camera title, time, video loss, camera lock, motion detection, recording
TV Output Adjustment Adjust TV output color & display zone
Audio
Audio Input 4/8 Channel, BNC, 200-2800mV, 30K Ohms
Bidirectional Talk Input 1 Channel, BNC, 200-2800mV, 30K Ohms, same with the 1st channel
Audio Output 1 channel, BNC, 200-300mv, 5K Ohms
Audio Compression G.711
Video Detection & Alarm
Motion Detection Zones: 396 (22*18) detection zones
Sensitivity: 1~6 (level 6 is highest)
Trigger recording, PTZ movement, tour, alarm, email
Video Loss Trigger recording, PTZ Movement, tour, alarm, email
Camera Blank Trigger recording, PTZ Movement, tour, alarm, email
Alarm Input 4/8 channel, programmable, ground, manual open/closed
Trigger recording, PTZ movement, tour, alarm, email
Relay Output 3/3/3 channel, 30VDC, 1A, NO/NC, form-C
Hard Disk
Hard Disk 1 SATA port, 1 HDD supported
Space Occupation Audio: 14.4MB/H
Video: 56~500MB/H
HDD Management Hard disk hibernation technology, HDD faulty alarm
Record, Playback & Backup
Recording Mode Manual, continuous, video detection (including motion detection, camera blank, video loss), Alarm
Recording Priority Manual > Alarm > Video Detection > Continuous
Recording Interval 1 to 120 minutes (default: 60 minutes), Pre-record up to 30 seconds, Post-record up to 5 minutes
Overwrite Mode Support
Search Mode Time/Date, Alarm, Motion Detection & exact search (accurate to second)
Playback 4/8 channel playback simultaneousl
Digital Zoom Selected zone can zoom into full screen during playback
Backup Mode Flash disk / USB HDD / USB CD/DVR-RW/ Network download
Network
Interface RJ-45 Port (10/100M)
Network Functions TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
Remote Operation Monitor, PTZ control, playback, system setting, file download, log information
Auxiliary Interface
USB Interface 2 ports, 1 for mouse control, 1 for backup
RS232 DAHUA keyboard, PC communication
RS485 PTZ control
Environmental
Power Supply 220V 50Hz / 110V 60Hz
Power Consumption 25W
Working Temperature -10C ~ 50C
Working Humidity 10%~90%
Atmosphere Pressure 86kpa~106kpa
Dimension 1U, 375mm x 285mm x 45mm (WxDxH)
Weight 2.35KG (without HDD)
Mounting Desktop or rack


D-1000-EX and B-1000-EX Camera Specs:

  • Small  Dome Camera / Small Bullet Camera
  • 23 IR LEDs for 65 Foot Range
  • 1/3" 960H / 960 X 480
  • 3.6mm Lens
  • 12V DC 400ma
