Product Details

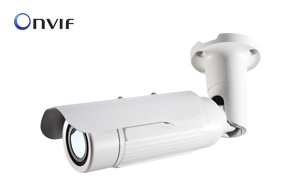

Ideal for parking lot installation, the B-IP-LPR-EX Camera is a 1.3 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 60 km/hr (37 mph) or less. With its multiple LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures from as low as -10°C (14°F) up to 50°C (122°F).

Specifications

mage Sensor		1/3” B/W progressive scan CMOS
Picture Elements		1280 (H) x 1024 (V)
Shutter Speed		Automatic, Manual (1/500 ~ 1/8000 sec)
White Balance		Automatic, Manual (2800K ~ 8500K)
S/N Ratio		50 dB
Max. Speed		60 km/h (37 mph)
Lens
Megapixel		1.3MP
Lens Type		Motorized varifocal lens
Focal Length		3 ~ 9 mm
Maximum Aperture		F/1.2
Mount		Ø14 mm
Image Format		1/2.7”
Operation	Focus	Auto Focus
	Zoom	3X Optical Zoom
	Iris	DC drive
IR Led Quantity		12
IR Distance		5m (16.4 ft.)
Operation
Video Compression		H.264, MJPEG
Video Stream		Stream 1 from H.264 and MJPEG Stream 2 from H.264 and MJPEG
Frame Rate		30 fps at 1280 x 1024 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Sharpness, Gamma, Image Orientation, Shutter Speed, Defog, Zoom, Focus Change
Audio Compression		N/A
Two-way Audio		N/A
Sensor Input		N/A
Alarm Output		N/A
Video Resolution
Main Stream	4:3	1280 x 960, 640 x 480, 320 x 240
	16:9	1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16:9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
TV-Out		N/A
Network
Interface		10/100 Base-T Ethernet, RJ-45 connector
Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Temperature Detector		Yes
Camera Adjustment	Pan	0° ~ 360°
	Tilt	90° ~ 180°
	Rotate	0° ~ 360°
Connectors	Power	PoE
	Ethernet	RJ-45
	Audio	N/A
	Digital I/O	N/A
LED Indicator		N/A
General
Operating Temperature		-10 °C ~ 50 °C (-14 °F ~ 122 °F )
Humidity		10% to 90% (no condensing)
Power Source		PoE (IEEE802.3at)
Max. Power Consumption		16.6 W
Dimensions (L X W X H)	Camera Body	289.02 x 87.75 x 148.95 mm (11.4" x 3.45" x 5.86")
	Cable Length	1 m (3.28 ft)
Weight		1.4 Kg (3.08 lb)
Ingress Protection		IP67
Vandal Resistance		IK10 for metal casing
Fan		Constantly On
Regulatory		CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard		IEEE 802.3at Power over Ethernet / PD
PoE Power Supply Type		End-Span
PoE Power Output		DC 48V, 345mA (16.6W Max.)
Web Interface
Installation Management		Web-based configuration
Firmware Upgrade		Remote upgrade through Web browser or upgrade using IP Device Utility (included in the Software DVD)
Access from Web Browser		Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications

Smart Device Access		- for Android smartphone, tablet, iPhone, and iPod Touch - HD for iPad. - embedded 3GPP/ISMA browser
Live Viewing		IE , MultiView
CMS Server support		Control Center, Center V2, VSM
