Specifications

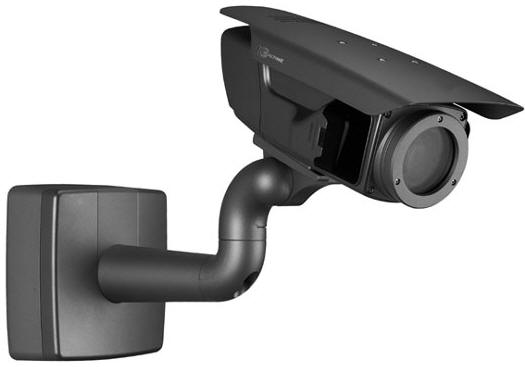

The new, feature-rich EL8000 brings more than cutting-edge style. It also brings you the power of sWDR with an integrated Active Infrared system. With the built-in 30X (f3.3~99mm) optical zoom lens and 10X digital zoom function, the camera provides 300X of zoom capability. Users can utilize the RS-485 interface remotely to manipulate the zoom as well as all of the cameras internal functions via the DVR. The EL-8000 is fully weather proof and is rated at IP66. It has 6 built in IR's that can illuminate up to 150ft. If longer distance of intelligent IR is needed you can easily connect the EL-IR1 illuminators on the spot to give it up to 300ft. There is also built in motion detection lights on the side that flash red when motion is sensed and stay blue when idle. The El-8000 features "Serve Ease" which allows you to remove the camera from it mount without disconnecting the camera from the wall. This feature makes service and installation quick and simple. The camera incorporates an Intelligent CDS control technology that triggers the mechanical day/night filter accurately. This filter is switched on and off with the image changing between Color and B/W at 5 lux outdoor darkness.
With user friendly IR Link outputs, installers can easily connect the EL-IR1 illuminator on the spot. Specially designed power circuit enables the camera to be operated from DC12V to DC30V maximizing the reliability of the unit from power fluctuations. This broad tolerance of power variations accepts most unstable power supplies without failure before or after installation.
Intelligent IR Compensation
Images from standard IR light become WHITE and saturated due to a lack of intensity settings per IR LED. New IR Compensation technology analyzes the light saturation and automatically optimizes the level of IR light to the objects. This technology results in useable video footage with maximum object verification.
Detachable mounting base
The mounting base is separate from the camera enabling the base to be mounted in advance. During installation the camera can pivot on one side of the base resulting in a user friendly install and service.
Compatible to an electric junction box
The mounting base is compatible to the industry standard 2-gang junction box for an easy installation.
Triple axis mounting
The EL7000 can achieve the right angle of view from any of diverse location. Install locations include wall, Ceiling, Slope, Ground etc.
|
Parameter |
EL-8000
|
|
Image Sensor |
STD : 1/4" Super HAD CCD |
|
Effective Pixels |
NTSC : 768(H) X 494(V) PAL : 752(H) X 582(V)
Note: PAL only available as special order.
|
|
H.Resolution |
NTSC : 520 TV Lines (at Day) / 570 TV Lines (at Night) |
|
Synchronizing System |
Internal |
|
Video output |
1.0Vp-p Composite. 75 Ohms |
|
S/N Ratio |
50dB (AGC Off) |
|
Min. Illumination |
0.0007 Lux at F1.6 (Sens-up) |
|
OSD menu |
RS485 (DVR or on Camera) |
|
Shutter Speed |
Auto / Manual (NTSC : 1/60~1/120,000 sec) (PAL : 1/50~120,000 sec) |
|
Sens-up |
Auto (2X~128X) / Off |
|
DNR (dynamic noise reduct |
Low / Middle / High / Off |
|
Privacy |
On / Off (Max. 32 zones / 8 Programmable zones per screen) |
|
Preset |
8 positions |
|
Motion Detection |
On / Off |
|
Power Source |
24VDC |
|
Lens |
Auto Focus Digital Zoom |
|
Zoom Ratio |
30X, f3.3~99mm (F1.6) |
|
Min. Focus Distance |
1.5M |
|
Operating Temperature |
14F -122F (-10C - +50C) |
|
Measurement (mm |
140(W) X 260(V) X 396(L) |
|
Weight (Approx.g) |
3000 |
|
Available IR Illuminator |
EL-IR1 |
|
Viewable Distance |
Up to 100M at moonless night with EL-IR1 x 2 in addition |
