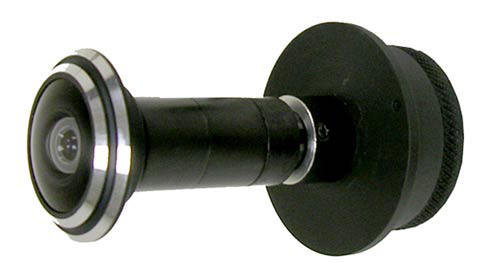

Adjustable to Multiple Standard doors width
-
Pick-up device: 1/3" CCD image sensor
-
Picture elements : EIA/NTSC: 512 H x 492 V - CCIR/PAL: 512 H x 582 V
-
Note: PAL only available as special order.
-
Horizontal resolution: 480 TVL
-
Minimun Illumination: 0.1 Lux
-
Horizontal Sync. frequency: EIA/NTSC: 15.734 KHZ - CCIR/PAL: 15.625 KHZ
-
Vertical frequency : EIA/NTSC: 60 HZ - CCIR/PAL: 50 HZ
-
Clock frequency: EIA/NTSC: 19.0699 MHZ - CCIR/PAL: 18.9375 MHZ
-
Lens: 1.7mm Super Wide Angle Lens
-
Video output: 1Vp-p , 75 Ohms
-
Gamma: 0.45
-
Power supply : DC12V
-
Power Consumption: 150 mA
-
Storage Temperature : -30C ~ 60C
-
Operation Temperature : -10C ~ 45C
-
* Bracket and Lens Not Included
