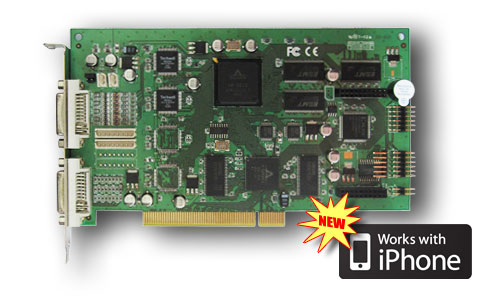

Protech 8ch 240 fps H.264 D1@30FPS DVR Board

Protech 8ch 240 fps H.264 DVR Board
Configuration Options
BoardPlat8240D1
Only:
$638.35




Product Details
Hardware H.264 CODEC
Healthy PC with low CPU load
PCI Express Type (x1)
Camera Input: 8 channel, Audio Input: 8 channel
Sensor Input: 8 channel, Relay Output: 4 channel
1 TV-Out (Spot 1, 4, 9 View)
1 Optional TV-Out (Spot 1, 4, 9 View)
Max. Display: 240 fps @ Full D1
Max. Record : 240 fps @ Full D1
PCI-E


Specifications

Windows 7 (32/64Bit), Windows 8 (32/64Bit)
Main Board
Intel Chipset
CPU
Intel® Core™ i3 or higher
RAM
4GB DDR3
Hard Drive
500GB with 32MB Cache
Graphics Card
Intel On-Board Video(H61 chipset or above)
Camera Inputs
8 Channels
Sound Inputs
8 Channels
Sensor Inputs
8 Channels (Optional)
Relay Outputs
4 Channels (Optional)
Composite Output
1 Channel (Spot 1, 4, 9 View)

1 Channel (Spot 1, 4, 9 View) (Optional)
Max. Display Speed
240 Frames/sec @ Full D1
Max. Recording Speed
240 Frames/sec @ Full D1
Resolution
352x240, 704x240, 704x480
DVR Software
DiViS DVR, DiViS-Net, Central Monitoring Software (CMS)

Web Browser (Internet Explorer, Safari, Firefox, Opera)

Mobile (Windows Mobile (Win CE), iPhone, Blackberry, Android)

DVR Software
Storage of high quality image data
Sound recording and support for two-way voice communication
Various modes of multi-view Screen (1, 4, 6, 9 Multi-view screen)
Movement detection and sensor activation
Fast and easy data search
Schedule management
Automatic data backup
E-mail Event Alert, IP Address Dispatch (for use with dynamic IP)
Control of multi-systems from a remote location (Net)
Support for the Internet Explorer (Web)


With PROTech-Net, you have access and total control of up to 16 DVR systems, including all of it's cameras (a total of 256 cameras) and search through and store all data of all the systems. PROTech-Web gives you the ability to check each camera with nothing more than an internet browser.

Common Applications
Automated Security Surveillance
Uses for automatic security surveillance (banks, buildings, factories, warehouses, apartments, parking lots, etc.)
Management and Surveillance of Trespassers
Uses for places with needs of management and surveillance of large crowds of people (hotels, casinos, department stores, large supermarkets, etc.)
Management and Surveillance of Branch Stores
Uses for needs of management and surveillance of each branch store from a remote location. (chain stores, agencies, etc.)
Advertisement Possibilities for Companies and Private Schools
Uses for advertisement or educational needs of Companies and Private Schools using real-time camera image on the internet. (companies, schools, private schools, kindergartens and other educational institutions, etc.)


iPhone Ready & Android ready
