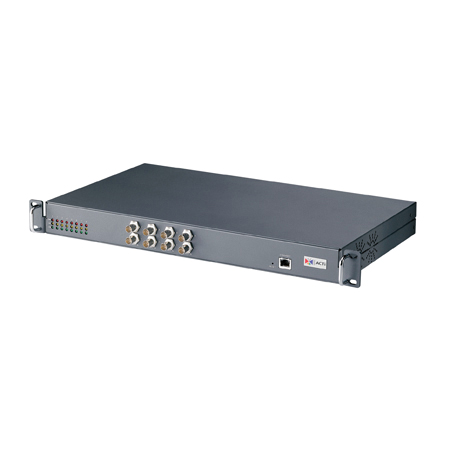

ACTi 1U Rackmount 8-channel Video Server with Two Way Audio

ACTi 1U Rackmount 8-channel Video Server with Two Way Audio


ACD-2300
$2,162.59

Product Details


  • Selectable MPEG-4/MJPEG compression
  • CIF up to Full D1 resolution at 30/25 FPS (per channel)
  • Multi-stream with variable frame rate in the same compression
  • Two way audio supported (per channel)
  • Hardware motion detection, Digital Input / Output (per channel)
  • Serial ports for each channel


Specifications



Video Compression
Compression MPEG-4 SP, MJPEG selectable
Picture Resolution Full D1 (720 x 480 in NTSC, 720x576 in PAL)
VGA (640 x 480 in NTSC, 640x480 in PAL)
CIF (352 x 240 in NTSC, 352x288 in PAL)
QCIF (160 x 112 in NTSC, 176x144 in PAL)
(per channel)
Bit Rate 28 K ~ 3 M bps (per channel)
Image Frame Rate 30fps at full D1 resolution (NTSC)
25fps at full D1 resolution (PAL)
Multi-stream Up to 2 configurable frame rate/bit rate streams for preview and recording
(per channel)
Video Input
Composite Input 8, CVBS, 1.0Vp-p with 75Ω loading, BNC connector
Video Output
Composite Output N/A
Audio Input
Compression 8kHz, Mono, PCM
Audio Line Input 8, Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Audio Output
Compression 8kHz, Mono, PCM
Audio Line Output 8, Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Alarm
Digital Input 2, TTL, terminal block (per channel)
Digital Output 2, TTL, terminal block (per channel)
Remote Control
Serial Port RS-485: Half Duplex, terminal block
RS-422: Full Duplex, terminal block
RS-232**: Full Duplex, terminal block (per channel)
External I/O
Reset Button Factory default
LED System Status (per channel)
Network
Ethernet Port Ethernet(10/100 Base-T), RJ-45 connector
Protocol TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP,FTP,SMTP,DNS,DDNS,NTP,ICMP,IGMP,ARP
Software
Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
PTZ Protocol* Pelco-D, Pelco-P V1 and V2, Dynacolor, Sony VISCA, American Dynamics
Security Password Protection: Configured by the Administrator
Operating
Temperature 0C ~ 50C (32F ~ 122F)
Power
Power Requirement AC 100 ~ 240V 50/60 Hz
Power Consumption 50 W

Physical
Dimensions (WxHxD) 444 mm x 44.5 mm x 272 mm
(17.48" x 1.75" x 10.72")

Weight

3.9 Kg (8.60 lb)

Approvals

Certificate

CE, FCC

Drivers & Manuals

Accessories
ACD-2300 Quick Installation Guide
ACD-2300 Hardware Manual
ACD-2300 Data Sheet

Photos & Videos

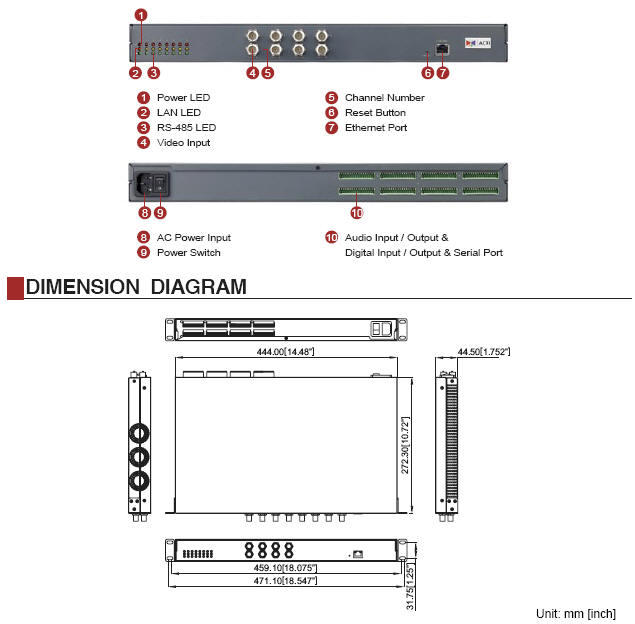

ACTi 1U Rackmount 8-channel Video Server with Two Way Audio TESTACD-2300-diagram.jpg
