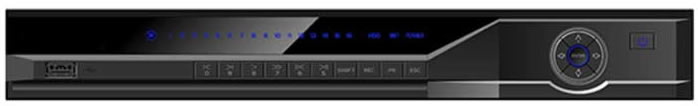

4 Channel NVR Kit - H.264E High Definition 1U Network Video Recorder with PoE

4 Channel NVR Kit - H.264E High Definition 1U Network Video Recorder with PoE

Hard Drive:

Monitor:

Addons:


SCW-NVR704NS-4CAMKIT
$1,460.35

Product Details


  • 4 channel 1U standalone Network Video Recorder
  • Up to 4 channel 1080P cameras realtime live view
  • Power over Internet (PoE)
  • H.264E/MPEG-4 dual codec decoding
  • 4ch@1080p or 8ch@720P or 16ch@D1
  • All channel simultaneous realtime playback, GRID interface & smart search
  • Support remote network camera encoding setting & image adjustment
  • IP Search feature to auto discover network cameras
  • Support 2 SATA HDDs up to 6TB, 2 USB2.0
  • Mobile phone access (iPhone, iPad, Android, Blackberry)
  • Built-in web server, CMS(PSS) & Mobile App
  • HDMI / VGA simultaneous video output
  • Multiple network monitoring: Web viewer, PSS(Pro Surveillance Software) & Mobile App Pro
  • Support Multi-brand network cameras such as: Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY and ONVIF


Specifications

The systems enable simultaneous recording and remote access to live images across the full range of 4/8 cameras. Scheduled and triggered recordings can be performed at a resolution of 720p (1280x720). Designed to deliver stability and reliable operation performance, these NVR's provide 'fall-back' fault-tolerance by employing occupancy space for 2 internal SATA hard drives.

Intelligent system diagnostics provide immediate incident details which are logged and reported in a user friendly format in order to ensure maximize 'up time' in system performance for the end user.

All of this NVRs are capable of being rack or desk-mounted and require no additional hardware for immediate operation on installation. The NVR's can be located at any point on a network permitting recording and playback across multiple sites regardless of location.



Model
SCW-NVR704NS
SCW-NVR708NS
SCW-NVR716NS

System
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX

Video
IP Camera Input
4 channel
8 channel
16 channel
Two-way Talk
1 channel Input, 1 channel Output, BNC

Display
Interface
1 HDMI, 1 VGA
Resolution
4ch@1080P 30FPS (1920x1080)
8ch@720P 30FPS (1280x720)
16ch@D1 30FPS (704x576/704x480)
Display Split
1/4
1/4/8/9
1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording
Compression
H.264 / MJPEG
Resolution
4ch@1080P (1920x1080)
8ch@720P (1280x720)
16ch@D1 704x576/704x480)
Record Rate
400/480fps@D1, 200/240fps@720P , 100/120fps@1080P
Bit Rate
48 ~ 8192kbps
Record Mode
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank
Alarm Input
4 channel
8 channel
16 channel
Relay Output
3 channel

Playback & Backup
Sync Playback
1/4
1/4/9
1/4/9/16
Search Mode
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device / Network

Network
Ethernet
RJ-45 port (10/100M/1000M)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone

Storage
Internal HDD
2 SATA ports (2HDDs), Max 3TBs per HDD.

Auxiliary Interface
USB
2 ports (1 Rear), USB2.0
RS232
1 port, For PC communication & Keyboard
RS485
1 port, For PTZ control
Supported IPCs
Click for PDF file

General
Power Supply
NVR: DC12V
PoE Switch: DC48V
Power Consumption
NVR: 20W(without HDD)
PoE Port: Max.15 (each)
Working Environment
14F ~ 131F (-10 ~+55°C) / 10~90%RH / 86~106kpa
Dimension (WxDxH)
1U, 14.8" x 11.2" x 2" (375mmx285mmx50mm)
Weight
~5lb / 2.3KG(without HDD)
