Specifications

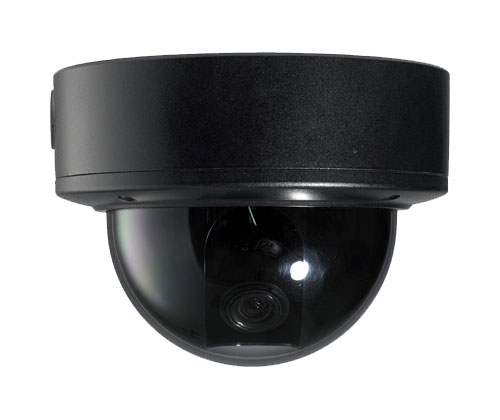

The EL-750 is a commercial grade 540TVL vandal day/night dome camera. The camera incorporates a unique spring loaded 2.2mm thick polycarbonate dome cover. Under attempted vandalism, the springs will absorb the majority of the shock leaving the camera safe and fully operational. Its die-cast 4mm thick body will protect against not only vandals but also will keep the camera free from rust and salty, harsh environments. To also prevent any down operational time the EL750 has a highly reliable surge absorptive circuit. This protects the camera from an excessive voltage input. In addition the EL750 has an extra interchangeable fuse at the entrance of the power circuit to cut off any voltage shock before it reaches the camera. An extra fuse is included with every dome.

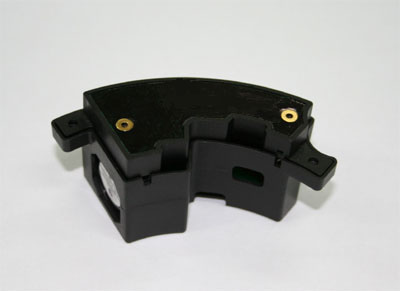

It features, Serve Ease (Swappable Internal Camera Module). This allows for the camera module to be removed for service or replacement while leaving the housing in place. There is also an optional heater mechanism when the temperatures go below -40F. This can be quickly installed and powered directly from the camera itself.

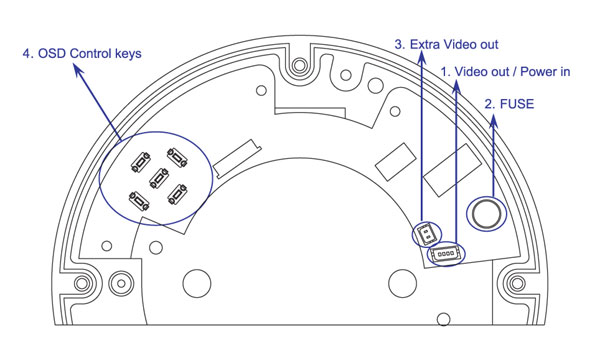

The EL750 features a 3.3-12mm Aspherical Extra-Low Dispersion Glass Vari-focal Lens. The camera and lens module sits perfectly in an easy to use toolless Tri-Axis mount. It also has a 3 layer IR filter unlike most 540TVL cameras that have a single layer. This makes for true color reproduction greatly improving picture quality overall. This vandal dome incorporates an easy to use OSD menu (on screen display) as well as a spot monitor output making setup quick and easy.

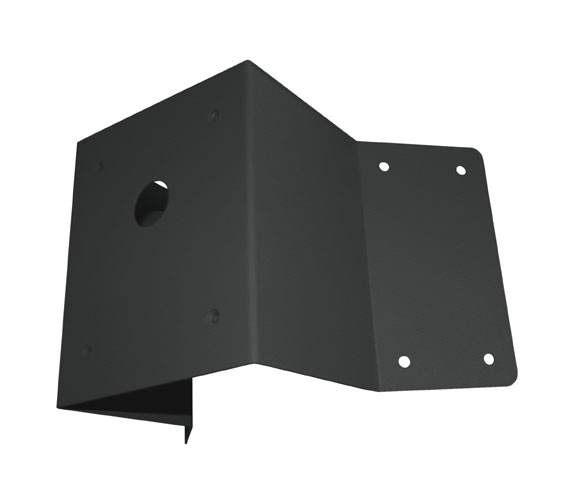

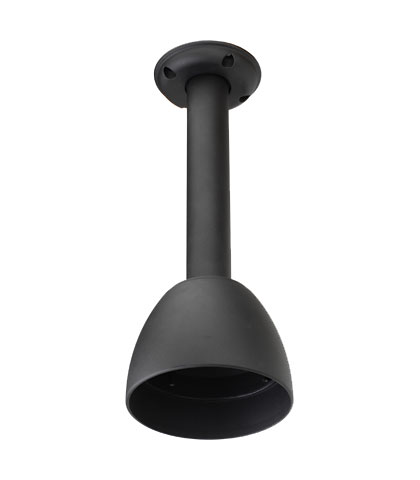

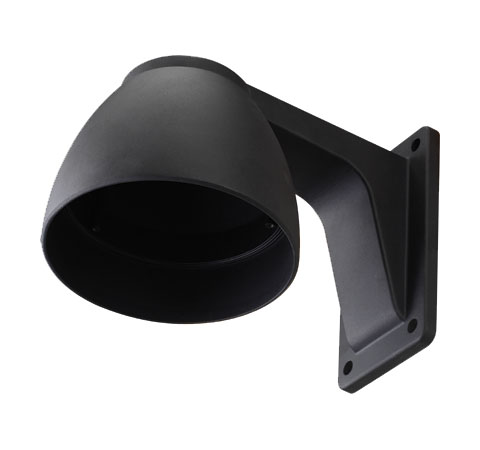

For dynamic applications there are three mounting options available for the camera wall, ceiling and corner.
|
Image Sensor |
1/3" SSNR II Sony Super HAD CCD |
|
Effective Pixels |
NTSC : 768(H)X494(V)
PAL : 752(H)X582(V)
Note: PAL only available as special order. |
|
H.Resolution |
NTSC : 540TVL(Day) & 570TVL(Night)) |
|
Video output |
1.0Vp-p Composite. 75 Ohms |
|
Min. Illumination |
0.3 Lux /F1.2 (50IRE, AGC High, DNR High) / 0.0002 Lux (Sens-up) |
|
Shutter Speed |
AUTO : 1/60 ~ 1/100,000 sec (NTSC)
1/50 ~ 1/100,000 sec (PAL)
Note: PAL only available as special order. |
|
Gamma correction |
Standard r=0.45 |
|
Smear Effect |
0.005% |
|
Power source |
AC24V / DC 12V |
|
Operating current |
At 12VDC : 200mA Max - (Tol.9VDC~30VDC) |
|
Lens |
3.3-12mm Extra-Low Dispersion Glass Vari-focal Lens |
|
Operating Temperature |
14F~122F (-10C~+50C) / -40F~122F (-40C~+50C) - with heater option |
|
Measurement (mm) |
121.5(D) X 164(L) |
|
Weight (Approx.g) |
1300 |
|
SNR |
Low, Middle, High, Off Selectable (Super Noise Reduction) |
|
Mirror |
ON/OFF |
|
Sharpness |
ON/OFF (Level Adjustable) |
