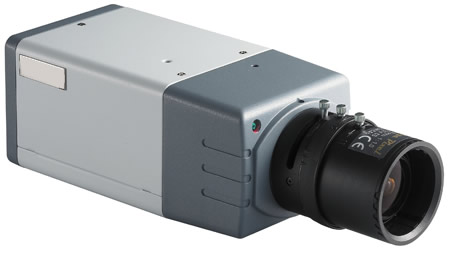

ACTi 1.3 Megapixel Superior Low Light PoE IP Box Security Camera

ACTi 1.3 Megapixel Superior Low Light PoE IP Box Security Camera 4.2 mm lens included
Configuration Options
ACM-5611
Only:
$512.12
Accessories:
MegaPixel Lens, CS Mount, f2.8~12mm, 1/3", Manual IRIS
PLEN-0202 add $139.05





Product Details
  • 1/3" Micron Progressive Scan CMOS
  • Day and night function with Mechanical IR Cut Filter
  • Bundled with f4.2mm / F1.8 Megapixel fixed lens
  • 0.05 Lux at F1.8
  • Shutter Speed, White Balance, Exposure, Gain Controls supported
  • Selectable MPEG-4 / MJPEG compression
  • Up to SXGA resolution at 8 fps
  • Multi-stream with variable frame rate in the same compression
  • Two-way audio supported
  • Hardware motion detection, Digital Input/Output
  • DC 12 V or Power over Ethernet (IEEE 802.3af) supported
  • 1 year parts and labor warranty


Specifications



Image Device Micron Progressive Scan SuperCMOS
Size 1/3 inch
Effective Pixels 1280 x 1024
Min. scene Illumination Color 0.5 Lux at F1.8 (30 IRE,MAX AGC)
B/W N/A
CDS Sensor N/A
IR Sensitivity N/A
Lens Lens Mount C /CS (with adaptor)
Focal Length f4.2 mm / F1.8
Viewing Angle 75 (Horizontal)
Synchronization Sync. System Internal
Day/Night Functions Mechanical IR Cut Filter N/A
Functions Motion Detection Yes (3 Windows)
Electronic Shutter 1/10 ~ 1/2,000 sec. (60Hz); 1/10 ~ 1/2,000 sec. (50Hz)
Flickerless 1/120 sec. (60Hz); 1/100 sec. (50Hz)
BLC Yes
AGC Automatic (User defined)
White Balance 6 modes (AUTO, INDOOR1, INDOOR2, OUTDOOR1, OUTDOOR2, HOLD CURRENT, MANUAL) configurable
S/N Ratio S/N Ratio Better than 44 dB
Video Compression Compression MPEG-4 SP, MJPEG selectable
Picture Resolution SXGA (1280x1024); HD 720 (1280x720); VGA (640x480)
Image Frame Rate Up to 8 fps at SXGA resolution; Up to 10 fps at HD720 resolution; Up to 30 fps at VGA resolution
Audio Input Compression 8 kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4Vp-p, 1Vrms, 3.5 mm Jack
Audio Output Compression 8 kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4Vp-p, 1Vrms, 3.5 mm Jack
Alarm Digital Input 1, terminal block
Transistor Ouput 1, terminal block
External I/O Reset Button Factory default
LED System status
Network Ethernet Ethernet(10/100Base-T), RJ-45 connector
Protocol TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP, FTP, SMTP, DNS, DDNS, NTP, ICMP, IGMP, ARP, 3GPP
Software Web Browser Microsoft Internet Explorer 6.0 or above
SDK ActiveX control, C SDK
Security Password protection: configured by the administrator
Operating Temperature 0C ~ 50C (32F ~ 122F)
Power Power Requirement PoE (IEEE802.3af) with Class 3
Power Consumption 3.3 W (DC 12 V); 4.3 W (PoE)
Physical Dimensions (WxHxD) 67 mm x 55 mm x 129.5 mm (2.64" x 2.17" x 5.10")
Weight 400 g (0.88 lb)



Drivers & Manuals

Photos & Videos

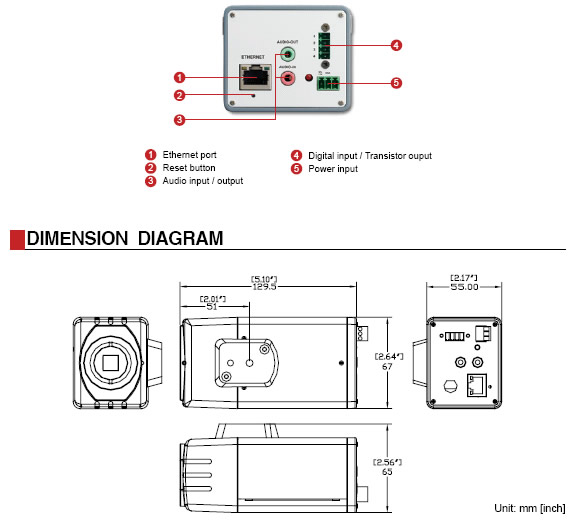

ACTi 1.3 Megapixel Superior Low Light PoE IP Box Security CameraTESTACM-5611-specs.jpg

Accessories


  • ACTi 1.3 Megapixel Superior Low Light PoE IP Box Security Camera
  • PLEN-0202
  • $139.05
  • MegaPixel Lens, CS Mount, f2.8~12mm, 1/3", Manual IRIS
