Specifications
|
|
ACM-1100 |
ACM-1111 |
|
Image |
Device |
Micron Interlaced Scan SuperCMOS
|
|
Size |
1/4 inch
|
|
Effective Pixels |
640 x 480 (NTSC); 640 x 480 (PAL)
|
|
Min. Scene Illumination |
Color |
0.1 Lux at F2.0
|
Color mode automatically switched to B/W mode under 7 Lux
|
|
B/W |
N/A
|
0 Lux at IR LED On
|
|
IR Sensitivity |
N/A
|
from 700 nm to 1100 nm
|
|
IR LED |
N/A
|
IR LED x24 (850 nm)
|
|
CDS Sensor |
N/A
|
Yes
|
|
IR Working Distance |
N/A
|
10 ~ 15 M (30 IRE)
|
|
Lens |
Focal Length |
f 3.8 mm / F 2.0
|
|
Viewing Angle |
71.5 (Horizontal)
|
|
Synchronization |
Sync. System |
Internal
|
|
Day/Night Functions |
Day/Night Switching |
N/A
|
Mechanical IR cut filter
|
|
Functions |
Motion Detection |
Yes (3 windows)
|
|
Electronic Shutter |
1/25 ~ 1/62,500 sec. (NTSC); 1/30 ~ 1/62,500 sec. (PAL)
|
|
BLC |
On/Off (switchable)
|
|
AGC |
Automatic
|
|
White Balance |
AWB / MWB (switchable)
|
|
S/N Ratio |
S/N Ratio |
Better than 38.8 dB
|
|
Video Compression |
Compression |
MPEG-4 SP
|
|
Picture Resolution |
VGA (640x480 in NTSC, 640x480 in PAL); CIF (352x240 in NTSC, 352x288 in PAL);
QCIF (176x120 in NTSC, 176x144 in PAL)
|
|
Bit Rate |
28 K ~ 3 M bps
|
|
Image Frame Rate |
30 fps at VGA resolution (NTSC); 25 fps at VGA resolution (PAL)
|
|
Video Output |
Video Output |
CVBS, 1.0Vp-p with 75 Ohms loading, BNC connector
|
|
Audio Input |
Compression |
8 kHz, Mono, PCM
|
|
Audio Line Input |
Unbalanced, 1.4Vp-p, 1Vrms, 3.5 mm Jack
|
|
Audio Output |
Compression |
8kHz, Mono, PCM
|
|
Audio Line Output |
Unbalanced, 1.4Vp-p, 1Vrms, 3.5 mm Jack
|
|

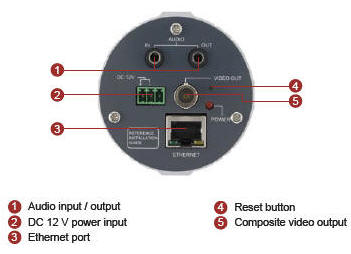

External I/O |
Reset Button |
Factory default
|
|
LED |
System status
|
|
Network |
Ethernet |
Ethernet(10/100 Base-T), RJ-45 connector
|
|
Protocol |
TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP
|
|
Software |
Web Browser |
Microsoft Internet Explorer 6.0 or above
|
|
SDK |
ActiveX control, C SDK
|
|
Security |
Password protection: configured by the administrator
|
|
Operating |
Temperature |
0C ~ 40C (0F ~ 104F)
|
|
Power |
Power Requirement |
DC 12 V +/-10% (ACM-1100)
PoE (IEEE802.3af) with Class 3 (ACM-1101)
|
PoE (IEEE802.3af) with Class 3 (ACM-1111)
|
|
Power Consumption |
3.2 W (DC 12 V)
3.7 W (PoE)
|
6.3 W (PoE) w/ IR ON
|
|

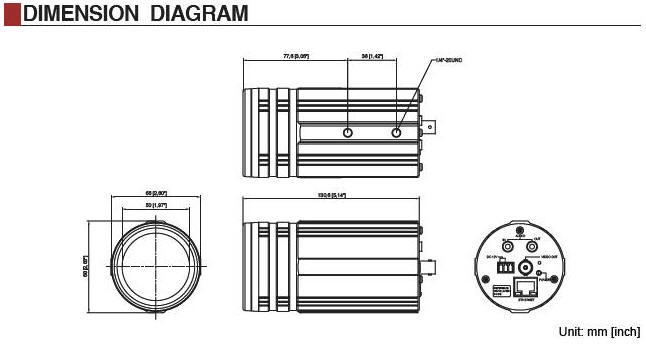

Physical |
Dimensions (xH) |
66 mm x 130.6 mm (2.6' x 5.14')
|
|
Weight |
460 g (1.0 lb)
|
*Not Compatible with the Protech DVR's
