Specifications
|
System |
CPU: Mozart 120 SoC
Flash: 16MB
RAM: 128MB + 128MBMB
Embedded OS: Linux 2.6 |
|
Lens |
f = 3 ~ 9 mm
F 1.2 (wide)
F 2.1 (tele)
auto iris
Board lens
vari-focal
Removable IR-cut filter for day & night function |
|
Angle of View |
31.7 ~ 93.0 Degrees (horizontal)
23.8 ~ 68.4 Degrees (vertical) |
|
Shutter Time |
1/5 ~ 1/40,000 sec |
|
Image sensor |
1/3.2" CMOS in 1600x1200 Resolution |
|
IR Illuminators |
Built-in IR illuminators, Effective up to 25 |
|
Video |
Compression: MJPEG & MPEG-4
Streaming:
Simultaneous multiple streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth saving
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
MPEG-4: Up to up to 30 fps at 800x600, Up to up to 10 fps at 1600x1200
MJPEG: Up to up to 30 fps at 800x600, Up to up to 10 fps at 1600x1200 |
|
Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC AWB AES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation) |
|
Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
Interface:
External microphone input
Supports two-way audio via SIP protocolGeneral I/O
Supports audio mute |
|
Networking |
10/100 Mbps Ethernet, RJ-45
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
|
Alarm and Event Management |
Triple-window video motion detection
One D/I and one D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper detection |
|
On-board Storage |
SD/SDHC card slot
Stores snapshots and video clips |
|
Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection |
|
Users |
10 clients on-line monitoring at the same time |
|
Dimensions |
83mm x 210 mm |
|
Weight |
Net: 1600 g |
|
Power |
12V DC
24V AC
Power consumption: Max. 7 W
802.3af compliant Power-over-Ethernet |
|
Housing |
Weather-proof IP67-rated housing |
|
Approvals |
CE C-Tick FCC LVD VCCI |
|
Operating Environments |
Temperature: -20 ~ 50C (-4 ~ 122F )
Humidity: 90% |
|
Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
|
Installation, Management, and Maintenance |
Installation Wizard 2
32-CH central management software
Supports firmware upgrade |
|
Applications |
SDK available for application development and system integration |
|
Warranty |
24 months |

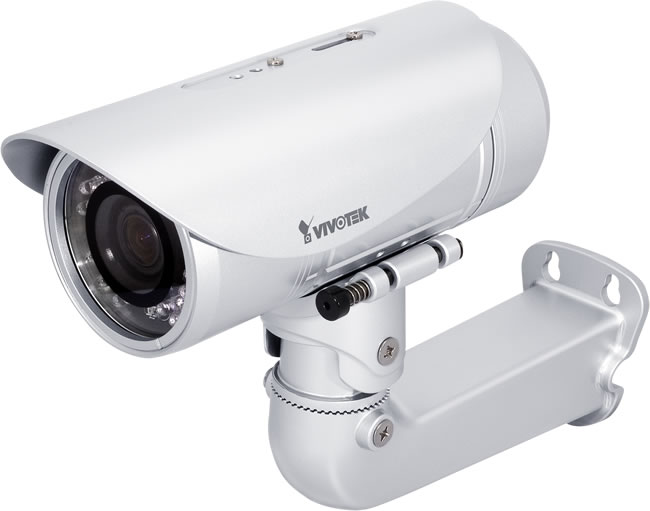

VIVOTEK IP7361 is a high-end 2-megapixel network bullet camera built for outdoor surveillance. With high resolution video and a combination of outdoor-specific features such as concealed wiring to prevent tampering, the IP7361 is the camera of choice for applications such as parking lots, gas stations, and building exteriors.
The IP7361 boasts high-definition 2-megapixel (1600 x 1200) resolution, allowing for the delivery of extremely detailed images and coverage 6 times larger than a VGA camera. To maximize the benefit of the 2-megapixel sensor, the IP7361 employs several innovative technologies for optimized bandwidth efficiency. The ePTZ function enables users to quickly move to a target area for close-up shots without moving the camera physically. Users can also receive only the portions of the images they are interested in via the cropping function. Furthermore, multiple video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. The IP7361 also offers activity adaptive streaming support that dynamically allocates bandwidth according to the video content and trigger state.
Aimed at outdoor surveillance, the IP7361 features auto-iris capability to protect the lens from damage induced by direct sunlight. To adapt to changing lighting conditions throughout the day, the camera is furnished with a removable IR-cut filter and IR illuminators for superior image quality around the clock. The IP7361 also comes with an IP67-rated housing that offers protection against rain and dust to ensure functional operation in all types of weather conditions. For easy management and protection against tempering and vandalism, the IP7361 is also equipped with a mounting bracket that conceals all cables within.
With other advanced features such as tamper detection, 802.3af compliant PoE, SD/SDHC card on-board storage, and two-way audio via SIP protocol, the IP7361 is a truly a full-fledged surveillance solution for outdoor environments.
