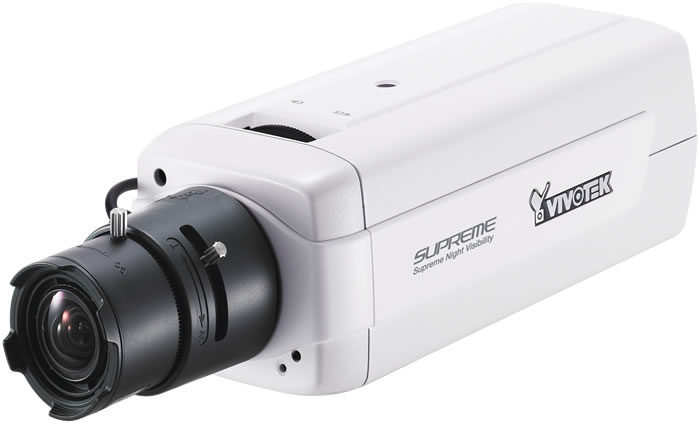

Supreme Night Visibility WDR Enhanced Fixed Network Camera

Supreme Night Visibility WDR Enhanced Fixed Network Camera


IP8151
$928.09

Product Details


  • 1.3 Megapixel CMOS Sensor
  • Supreme Night Visibility
  • Up to 30 fps @ 1280x1024 (1.3MP)
  • 3.1 ~ 8 mm Vari-focal, Auto-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Supports WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Multiple Simultaneous Streams
  • ePTZ for Data Efficiency
  • Activity Adaptive Streaming for Dynamic Frame Rate Control
  • Tamper Detection for Unauthorized Changes
  • Built-in SD/SDHC Card Slot for On-board Storage
  • Built-in 802.3af Compliant PoE
  • CS- or C-mount Adjustment Ring for Flexible Lens Installation
  • Supports ONVIF Standard to Simplify Integration and Enhance Interoperability


Specifications

VIVOTEK IP8151/51P represent the next-generation in video quality in network cameras. As part of VIVOTEK's SUPREME Series, the cameras feature the utmost in picture clarity through utilization of SONY's latest sensor technology, dubbed "ExmorTM ", which enables the camera to capture exceptional details during daytime, as well as to offer unparalleled visibility under low-light conditions through its Supreme Night Visibility feature. Additional value-added functions that give users more flexibility and efficiency of use include WDR Enhancement, which allows users to identify image details in extremely bright and dark environments.

The IP8151P model features a number of additional premium features, giving users more flexibility and efficiency of use. The advanced P-Iris lens controls the iris using the built-in stepping motor with extreme precision via software control to maintain the iris opening at an optimal level at all times, resulting in superior sharpness, depth of field, and image quality. The IP8151P is also equipped with a Focus Assist button, assisting the user to optimally adjust the camera focus. When pressing the Focus Assist button on the camera unit, an indicator display will be shown on the screen with detailed focusing information. Keeping the button pressed will enable zooming in on the target area for fine tuning, resulting in better usability as well as picture clarity.

Both the IP8151 and IP8151P also feature a myriad of other high-end features such as SD/SDHC card slot, PoE, and multiple streams, making it the ideal choice for the most demanding monitoring applications. By providing the best quality sharp, smooth video, plus exceptional performance in low-light conditions, the IP8151/51P can secure a variety of sites such as retail stores, school campuses, and much more.


System CPU: Multimedia SoC
Lens f=3.1 ~ 8 mm
F 1.2
auto iris
CS-mount
Vari-focal
Removable IR-cut filter for day & night function
Angle of View 35.2 ~ 86.7 Degrees (horizontal)
26.5 ~ 64.4 Degrees (vertical)
43.9 ~ 110.3 Degrees (diagonal)
Shutter Time 1/5 ~ 1/40,000 sec
Image sensor 1/3" CMOS in 1280x1024 Resolution
Minimum Illumination 0.04 Lux / F1.2 ( typical )
0.001 Lux / F1.2 ( B/W )
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x1024
MPEG-4: Up to 30 fps at 1280x1024
MJPEG: Up to 30 fps at 1280x1024
BNC connector for video output
NTSC/PAL video output switch
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC AWB AES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced
Audio Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law
Interface:
Built-in microphone
External microphone input
Audio output

External/Internal microphone switch
Supports two-way audio
Supports audio mute
Networking 10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage SD/SDHC card slot
Stores snapshots and video clips
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Dimensions Depth: 154mm
Width: 72mm
Height: 62mm
Weight Net: 664 g
LED Indicator System power and status indicator
System activity and network link indicator
Power 12V DC
24V AC
Power consumption: Max. 3.6 W
Approvals CE C-Tick FCC LVD VCCI UL
Operating Environments Temperature: -10 ~ 50C (14 ~ 122F)
Humidity: 90%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 36 months
