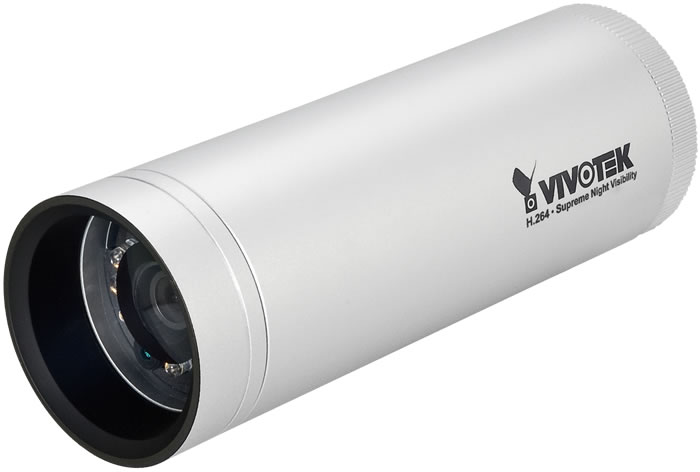

Vivotek H.264 Supreme Night Visibility Network Bullet Camera

Vivotek H.264 Supreme Night Visibility Network Bullet Camera


IP8330
$519.98

Product Details


  • Supreme Night Visibility
  • Vivid and Faithful Color Performance
  • 60 fps for Smoother, Razor-Sharp Video of High-Speed Objects
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, effective up to 15 Meters
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Multiple Simultaneous Streams
  • Activity Adaptive Streaming for Dynamic Frame Rate Control
  • Weather-proof IP66 rated Housing
  • Tamper Detection for Unauthorized Changes
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Supports ONVIF Standard to Simplify Integration and Enhance Interoperability


IP8330 Brochure

Specifications

VIVOTEK IP8330 is the best bullet-style network camera offering supreme night visibility for diverse outdoor applications. Featuring up to an unbelievable 60fps at VGA resolution and exceptional low light sensitivity down to 0.1 lux, the VIVOTEK IP8330 captures impressively smooth and crystal-clear video, even at nighttime. In order to adapt to constantly changing outdoor lighting conditions, the IP8330 also features a removable IR-cut filter as well as IR illuminators for superior image quality around the clock. With the Advanced Color Reproduction technology, users need to look no further for an all-in-one outdoor camera capable of capturing high quality, vivid video for both day and night.

For protection against harsh outdoor environments, the camera comes in an IP66-rated housing and weather-proof casing to withstand rain and dust. The IP8330 also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, MPEG-4, and MJPEG compatibility all included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile applications. The streams can also be individually configured to meet different needs or bandwidth constraints, thereby further optimizing bandwidth and storage.

Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, SD/SDHC card slot, and VIVOTEK's 32-channel recording software, the IP8330 is the ideal solution for outdoor surveillance for low light and high frame rate applications.



Networking 10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
1 D/I for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage MicroSD/SDHC card slot
Stores snapshots and video clips
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Dimensions 60mm x 170 mm
Cable length: 400 mm
Cable diameter: 12 mm; Ring: 18 mm
Weight Net: 702 g
Power 12V DC
24V AC
Power consumption: Max. 4 W
802.3af compliant Power-over-Ethernet (Class 2)
Housing Weather-proof IP66-rated housing
Approvals CE C-Tick FCC LVD VCCI UL
Operating Environments Temperature: -20 ~ 50C (-4 ~ 122F )
Humidity: 90%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 24 months
System CPU: Multimedia SoC
Lens f=4 mm
F 1.6
Board lens
IR corrected
Removable IR-cut filter for day & night function
Angle of View 46.6 Degrees (horizontal)
35.4 Degrees (vertical)
57.7 Degrees (diagonal)
Shutter Time 1/5 ~ 1/15,000 sec
Image sensor 1/4" CMOS in VGA Resolution
Minimum Illumination Supreme Night Visibility: below 0.1 Lux @ 10 IRE, F1.6, 1/5 s exposure time
0 Lux @ F1.6 ( IR LED on )
IR Illuminators IR LED x 12
Built-in IR illuminators, Effective up to 15 meter
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 60 fps at 640x480
MPEG-4: Up to 60 fps at 640x480
MJPEG: Up to 60 fps at 640x480
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC AWB AES
Supports privacy masks
