Product Details

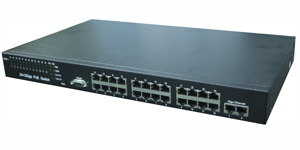

POE-SW2402LF is a 24-Port 10M/100M Fast Ethernet POE Switch with 2-Port 10M/100M/1000M.
Each port is power supply up to 15.4W. The total PoE power budget is 200W.
-
Support up to 200W of POE Power-Internal Power Supply
-
Setting free and Comply with IEEE 802.3af PoE standard
-
Auto-MDI/MDI-X, Auto-Negotiation
-
Powered Device(PD) Detection
-
Rackmountable- Comewith rackmount holder
-
Safety Protection on Low Power Devices
Specifications
POE-SW2402LF is a 24-Port 10M/100M Fast Ethernet POE Switch with 2-Port 10M/100M/1000M. Each port is power supply up to 15.4W. The total PoE power budget is 200W.
|
No. OF POE Ports |
24-port 10/100BaseT(X) with PoE (Lite/ Full power) +2 Gigabit ports |
|
Pass Through Data Rates |
10/100 Mbps |
|
Switch Type |
RAckmount |
|
Standard |
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p QoS
IEEE 802.3ad LACP
IEEE 802.1x Port-based Network Access Control
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
POE Spec |
Supports up to 15.4 W for each PoE port
PD classification identify
PoE over current protection
PoE circuit sorting protection
PoE power on RJ-45 pin 3,6 for power + / pin 1,2 for power
|
|
MAC Address Table |
4K |
|
Buffer Memory |
2750K bits |
|
Transmission Method |
Store and Forward |
|
Pin Assignment and Polarity |
1/2 (+), 3/6 (–) or 4/5(+),7/8(-) |
|
Output Power Voltage |
52 VDC Maximun |
|
User Port Power |
200 Watts Maximun |
|
Input Power AC Input Voltage |
100 ~ 240 VAC |
|
Requirements AC Input Current |
100-240 VAC (External Power Adapter) |
|
AC Frequency |
50 to 60 Hz |
|
Dimensions |
17.3" x 8.6" x 1.73" (440mm x 220 mm x 44 mm) |
|
Weight |
7.2 lb(3.25 Kg) |
|
LED Indicators |
System Indicator: AC Power, DATA Activity |
|
Connectors |
RJ-45 |
|
Operating Ambient Temperature |
14F to 113F (-10C to 45C) |
|
Regulatory |
IEEE 802.3ax, RoHS Compliant, CE/FCC |
|
Safety Approvals |
EN 60950:2006 |
