Product Details

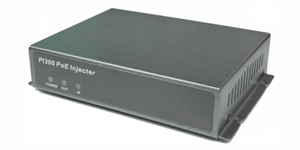

POE-I300 is a single port, high-power 40W PoE Injector. Generating up to 40W, POE-I300
supplies remote power for IP camera appication.
-
Supports Up to 40 W of POE power
-
Compataible with IEEE 802.3af/ PD Detection
-
Easy Installation - Parallel Slid-in Design
-
Support 10/100 Base-T Lan Environment
-
Safety Protection on Low Power Devices
Specifications
POE-I300 is a single port, high-power 40W PoE Injector. Generating up to 40W, POE-I300 supplies remote power for IP camera appication. It complies to IEEE 802.3at PoE standard and backward compatible to IEEE802.3af. It can work with 10/100Base-T networking devices.
No. OF POE Ports
1
Pass Through Data Rates
10/100 Mbps
Pin Assignment and Polarity
1/2 (+), 3/6 (-) or 4/5(+),7/8(-)
Output Power Voltage
52 VDC Maximun
User Port Power
40 Watts Maximun
Input Power AC Input Voltage
100 ~ 240 VAC
Requirements AC Input Current
0.8A @ 100-240 VAC
AC Frequency
50 to 60 Hz
Dimensions
1.1" x 3.54" x 4.72" (28mm x 90 mm x 120 mm)
Weight
12.25 Oz(350g)
Indicators
System Indicator: AC Power, DATA Activity
Connectors
RJ-45
Operating Ambient Temperature
14F to 113F (-10C to 45C)
Regulatory
IEEE 802.3ax, RoHS Compliant, CE/FCC
Safety Approvals
EN 60950:2006
