CAMERA
Model	Lcva
Image Sensor	1/3'SHARP
Horizontal Resolution	420 TV Line
Pixels	PAL:500(H) x 582(V) NTSC:510(H) x 492(V)
TV System	PAL/NTSC
IR LED	5 X 12 PCS
IR Series Distance	10 M
Lens	Board Lens 3.6mm
Sync System	Internal
IR Status	Under 10 Lux By CDS
Usable Illumination	0 Lux/F2.0 (LED ON)
IR Power On	CDS Auto Control
S/N Ratio	48dB (AGC OFF)
Gamma Correction	0.45
Video Out	Composite Signal (1.0Vp-p, 75Ω)
Scanning System	PAL:625 Lines, 50 Field/Sec; NTSC:525 Lines, 60 Field/Sec
Electronic Shutter Time	Auto:PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec
Operation Temperature	-10 C ~ +50 C RH95% Max
Storage Temperature	-20 C ~ +60 C RH95% Max
White Balance	Auto
Power Source	DC12V 200mA
Dimension	75(W) x 75(H) x 45(D)mm
Weight	300g
MONITOR
Display Device	Color TFT-LCD
Screen Size	7 Inches
Audio Output	Max.0.3W
Loudspeaker	One 4.5cm Round Loudspeaker
Connecting Terminal	Earphone Jack, Audio/Video (AV) Input Jack, External Power Supply Input Jack, Rear Vision Connector
Application Power Supply	Car Battery(12V), Automobile Adapter
Power Consumption	About 10W
Outer Dimension	200mm(W) x 133mm(H) x 38mm(T)
Weight	540g
Resolution	1440(H) x 234(V)
Contrast	150:1
Brightness	300cd/гЋЎ
Viewing Angle	U:15/D:35,R/L:50

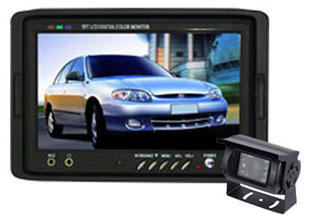

Weatherproof Camera Car Rear View System
