Specifications

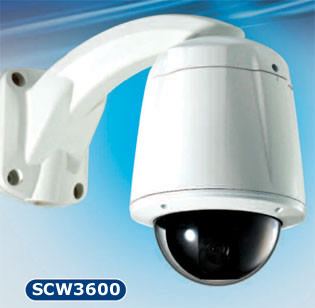

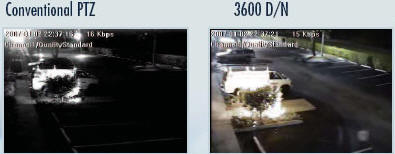

The SCW3600 is a high speed PTZ dome camera which can pan a full 360 degrees in 1 second. Having 36X optical zoom and 520 TV lines of resolution the SCW3600 produces excellent picture quality and extremely high zoom capability. Performance of this camera at night is really something to behold. This PTZ camera incorporates a 1/4" SONY EXview HAD CCD for high sensitivity in extreme low light environments. For optimized sensitivity in both day and night-time shooting applications, the SCW3600 incorporates an Auto ICR (mechanical IR cut filter). With its DSS(digital slow shutter) function SCW3600 takes Day/Night to the next Level. This PTZ can achieve full color in as low as 0.002 LUX. The SCW3600 is IP66 weatherproof as well as fully vandal proof which make it perfect for all installations both indoor and outdoor.
The SCW3600 works perfectly with either our Pro or the Flex DVR. It is one of only a few speed domes in the world that has 36X optical zoom capabilities. All of the OSD (on screen display) menus can be accessed directly through the DVR interface. You can set all of the presets as well as tours, patterns and swings via the DVR with no additional joystick or controller. This camera is great when the normal range of a speed domes will just not do.
Fast & Silent
-
1/4 Inch Sony EX-View CCD 520 TV Lines
-
Shortest Path by vector drive technology
-
High accuracy with micro-stepping control technology
-
Smooth motion at high zoom magnification mode
-
Lightning speed (max. 360 degrees a second) & smooth manual speed (min. 0.05 degrees a second)
-
Lowest noise and lowest vibration
-
Endless 360 degrees pan rotation
Superior Zoom Camera
-
X432 Zoom Control (Optical X36, Digital X12)
-
Day & Night (IR Cut Filter) with DSS
Powerful Functions
-
Independent Preset Characteristic Setup (AE, WB and etc.)
-
128 Preset Positions with Alphanumeric Labels
-
4 Pattern, 8 Swing and 8 Group Functions
-
Auto Flip, Auto Parking, Power-up Action
-
On-Screen Display On/Off
-
Built-in Sensor In/Out Function (4 In / 2 Out)
-
Built-in Fan & Heater / IP66 Weather-Proof
-
Vandal-Proof Case
|
Parameter |
SCW3600
|
|
Image Sensor |
1/4" Sony EX-VIEW CCD |
|
Resolution |
520 TVLines |
|
Camera |
Sony 36X Optical Zoom Camera |
|
IR Filter |
Day & Night (IR Cut Filter) with Digital Slow Shutter |
|
Motor |
High Accuracy with Micro-Stepping Motor(low noise, low vibration) |
|
Pan Speed |
Endless 360 Degrees Pan Rotation at 360 Degrees /sec |
|
Manual Pan Speed |
MIN. 0.05 Degrees/sec |
|
Preset |
128 wiht Alphanumeric labels |
|
Scan, Tour, Patten |
4 Pattern, 8 Swing and 8 Group Functions |
|
Privacy Zone |
8 Privacy Zones (Spherical Coordinates) |
|
Others |
Auto Flip, Auto Parking, Power-up Action |
|
Weatherproof |
IP66 |
|
Case |
Vandal-Proof case |
|
OSD |
On-Screen Disply on/off |
