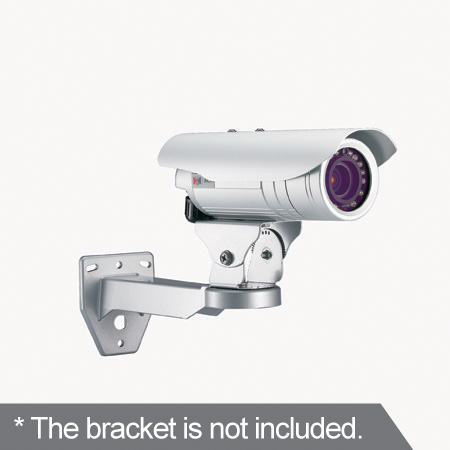

ACTi H.264 Megapixel Outdoor IP IR Bullet Camera

ACTi H.264 Megapixel Outdoor IP IR Bullet Camera


TCM-1231
$804.92

Product Details


  • 1/3" Micron Progressive Scan CMOS
  • Day and night function with Mechanical IR Cut Filter
  • Integrated f3.3 ~ 12 mm / F1.6 Megapixel varifocal lens
  • 0 Lux (IR LED ON)
  • H.264 / MPEG-4 SP / MJPEG triple codec with two simultaneous streams
  • Up to SXGA resolution at 18 FPS
  • Wide Dynamic Range function supported
  • Shutter Speed, White Balance, Exposure, Gain Controls supported
  • Two-way audio supported
  • Hardware motion detection, Digital Input / Output
  • DC 12V or Power over Ethernet (IEEE 802.3af) supported
  • IP66 weatherproof supported
  • The bracket needs to be purchased separately


Specifications



Image Device Micron Progressive Scan CMOS
Size 1/3 inch
Effective Pixels 1280(H) x 1024(V)
Min. Scene Illumination Color Color mode automatically switched to B/W mode under 4 Lux
B/W 0 Lux (IR LED ON)
IR Sensitivity from 700 nm to 1100 nm
IR LED IR LED x 24 (850nm)
CDS Sensor Yes
IR Working Distance 20 ~ 30 M(30 IRE)
Lens Focal Length f3.3 ~ 12 mm / F1.6
Viewing Angle 76.5 ~ 21.7 (Horizontal)

Synchronization

 Sync. System Internal
Day/Night Functions Mechanical IR Cut Filter Yes
Functions Motion Detection Yes (3 Windows)
Electronic Shutter 1/5 ~ 1/15,000 sec
Fixed Shutter (Manual) 1/30 ~ 1/1,000 sec. (60Hz)
1/25 ~ 1/1,000 sec. (50Hz)
Flickerless 1/120 sec. (60Hz)
1/100 sec. (50Hz)
AGC Automatic (User defined)
White Balance AUTO,INDOOR1,INDOOR2,OUTDOOR1,OUTDOOR2, HOLD CURRENT, MANUAL
Wide Dynamic Range Yes
S/N Ratio S/N Ratio Better than 44 dB
Video Compression Compression H.264/ MPEG-4 SP/ MJPEG simultaneous dual streams selectable
Picture Resolution SXGA (1280x1024);
HD720 (1280x720);
VGA (640x480);
QVGA (320 x 240);
QQVGA (160 x 112)
Bit Rate 28 K ~ 6 M bps
Image Frame Rate 18 fps at SXGA;
26 fps at HD720;
30 fps at VGA;
30 fps at QVGA;
30 fps at QQVGA
Audio Input Compression 8kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Audio Output Compression 8kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Alarm Digital Input 1, TTL, terminal block
Digital Output 1, TTL, terminal block
External I/O Reset Button Factory default
LED System status
Casing IP66 Rated Weatherproof casing with IP66 standard
Network Ethernet Port Ethernet(10/100 Base-T), RJ-45 Connector
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Software Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
Security Password Protection: Configured by the Administrator
Operating Temperature -20C ~ 50C (-4F ~ 122F)
Power Power Requirement PoE(IEEE802.3af) with class 3
Power Consumption 6.96 W (DC 12V) w/ IR LED ON
8.16 W (PoE) w/ IR LED ON

Physical

 Dimensions 77 mm x 220 mm (3.03"x 8.66")

Weight

 685g (1.51 lb), with sunshield

Approvals

Certificate

 CE, FCC, IP66

Drivers & Manuals

Photos & Videos

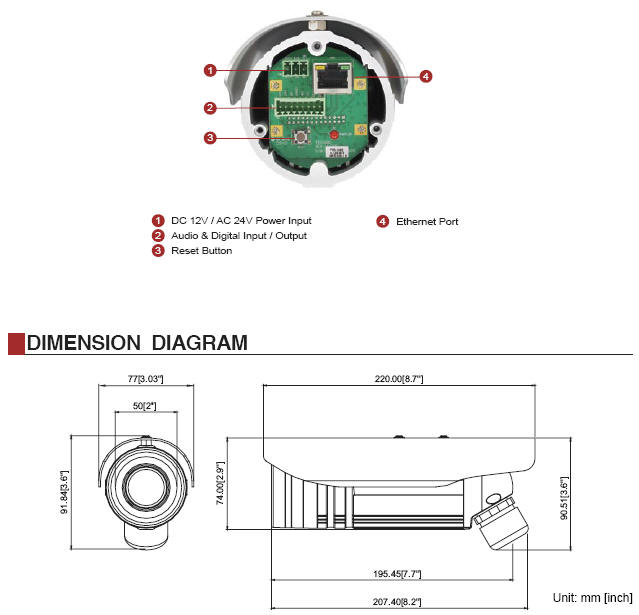

ACTi H.264 Megapixel Outdoor IP IR Bullet Camera TESTTCM-1231-diagram.jpg
